Smoke Alarm - Family Gard 888D Teardown

For Maximum Resolution, Click on the Body of the Picture.

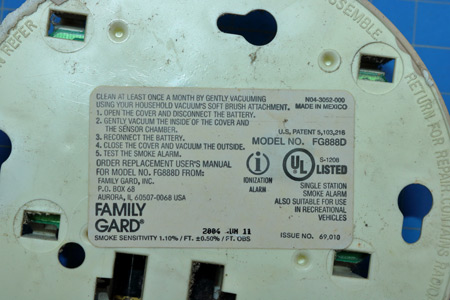

Family Gard 888D Tag
Family Gard 888D - Manufactuer's Tag.
Inside the Family Gard 888D.
Inside the Family Gard 888D.
Inside the Family Gard 888D.
On this FG 888D, there is a Date Code on the Horn.
Componet Side PC Board for the Family_Gard 888D.
888D Component Side of the Printed Circuit Board (PCB).
Back of Family_Gard 888D PCB.
Back View of the Printed Circuit Board for the Family_Gard 888D.
Back of Family_Gard 888D PCB.
Comparison of Family Gard 888D PCB to First Alert SA90 PCB.

References:

  1. Family Gard 888D User Manual
